+36-
Sleeps 6
-
3 Slides
-
Bunk Over Cab
-
31ft Long

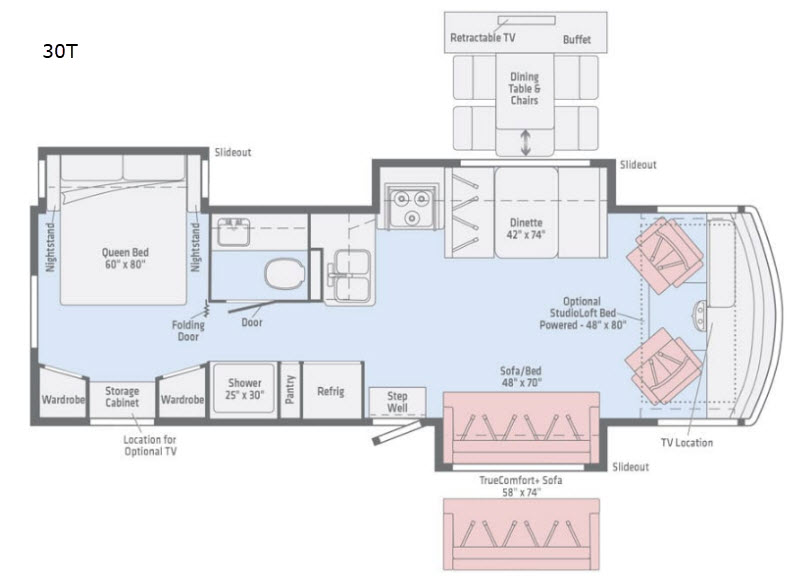

30T Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 31 ft | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 1 in | Int Height | 6 ft 8 in |
| Hitch Weight | 5000 lbs | GVWR | 18000 lbs |
| Fresh Water Capacity | 78 gals | Grey Water Capacity | 42 gals |
| Black Water Capacity | 41 gals | Tire Size | 19.5" |
| Furnace BTU | 30000 btu | Fuel Type | Gasoline |
| Engine | Triton V10 | Chassis | Ford F53 |
| Fuel Capacity | 80 gals | Wheelbase | 190 in |
| Number Of Bunks | 1 | Available Beds | Queen |
| Refrigerator Type | Two Door | Cooktop Burners | 3 |
| Shower Size | 25" x 30" | Number of Awnings | 1 |
| Axle Weight Front | 7000 lbs | Axle Weight Rear | 12000 lbs |
| LP Tank Capacity | 18 | Water Heater Capacity | 6 gal |
| Water Heater Type | 110 Volt LP | AC BTU | 14800 btu |
| Basement Storage | 118 cu. ft. | TV Info | Coach 32" HDTV |
| Awning Info | 19' Powered | Gross Combined Weight | 23000 lbs |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | 1F65F5DY9H0A17041 |
Description
Winnebago Sunstar LX class A motorhome 30T highlights:
- Queen Bed
- Triple Slide Outs
- Full Bathroom
- 48" x 70" Sofa Bed
This Winnebago Sunstar LX class A gas motorhome 30T features triple slide outs for added interior space, sleeping for six, and all the amenities you need while traveling. Seating space can be found at the driver and passenger seats, the 42" x 74" dinette, and the 48" x 70" sofa bed. At night the sofa and dinette easily convert into sleeping room for your kids. You will enjoy the convenience of the full bathroom which features a private toilet area and sink along one side, and a 25" x 30" shower across the hall. In the rear bedroom there is plenty of space for your clothes with the two wardrobes plus you will find a storage cabinet. The room also features a queen bed and two nightstands!
When you choose to travel with a Winnebago Sunstar LX you are choosing a quality vehicle with a 3-valve Triton V10 engine. For added comfort in the cab there are seats with two-position armrests, fixed lumbar support, and a multi-adjustable slide/recline/swivel. Each day enjoy your view from the tinted dual-pane windows, plus there are LED lights and easy to clean vinyl flooring throughout. The bedroom has a queen bed with an Innerspring mattress and storage below plus extra storage space with the wardrobe cabinet with sliding mirror doors! Wherever your travels take you, you will want a Sunstar LX to be your home on wheels!
Features
Standard Features (2018)
Ford F53 Chassis
- 3-valve Triton® V10 engine SEFI, TorqShift™ 6-speed automatic transmission w/tow/haul, 175-amp. alternator
- Hydraulic brakes w/ABS
- Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- 7-pin connector
- Stainless steel wheel liners and rear valve stem extensions w/19.5" tires (27N, 30T)
- Stylized aluminum wheels w/22.5" tires (35F)
- Automatic hydraulic leveling jacks
Optional Equipment
- Rear valve stem extensions w/22.5" tires (35F)
Cab Conveniences
- Radio/Rearview Monitor System 10” LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, Spotify®, AppRadio One
- Cab seats w/two-position armrests, fixed lumbar support, and multi-adjustable slide/recline/swivel
- 3-point seat belts
- Chassis/house battery radio power switch
- Power steering w/tilt wheel
- Power mirrors w/defrost
- Cruise control
- Map lights
- Dash workstation w/USB and 12-volt powerpoint
- Convenience tray
- Instrument panel
Optional Equipment
- 6-way power driver seat
- Passenger seat w/footrest
- Dual-speed defroster fans
- SiriusXM® satellite radio, receiver, antenna (includes 90-day trial subscription)
- Sideview video camera system
Interior
- 32" HDTV (front 30T)
- 39" HDTV (35F)
- 50" HDTV (27N)
- Amplified digital TV antenna system
- Video selection system
- Vinyl flooring throughout
- Satellite system ready
- MCD solar/blackout roller shades (in select areas)
- OnePlace® systems monitor
- Powered ventilator fan (lounge)
- Powered ventilator roof vent (27N bedroom)
- Powered roof vent (bath)
- Tinted dual-pane windows
- LED lights
- Electric fireplace (35F)
- Washer/dryer prep (35F)
Optional Equipment
- Powered StudioLoft™ bed (w/ladder)
- Dining table/buffet/chairs w/retractable 40" HDTV (30T)
- 32" HDTV (front) (27N)
- Washer/dryer (35F)
- BenchMark® Dinette (27N, 35F)
- TrueComfort+ Sofa (30T)
Galley
- Corian countertops w/decorative backsplash and sink covers
- Flip-up countertop extension (NA 27N)
- 2-door refrigerator/freezer (NA 35F)
- 2-door residential refrigerator (35F)
- Microwave oven (30T)
- Microwave oven w/range fan (NA 30T)
- 3-burner range top w/covers and storage below
- Vented range hood (30T)
- Pantry
Optional Equipment
- 3-burner range w/oven
- 4-door refrigerator/freezer w/icemaker and water purifier (35F)
- Microwave/convection oven (30T)
- Microwave/convection oven w/range fan (NA 30T)
Bath
- Laminate countertop w/decorative backsplash
- Oval sink
- Flexible showerhead
- Textured glass shower door
- Skylight
- Porcelain toilet(s) w/foot pedal and sprayer
- Medicine cabinet (NA 27N)
- Linen cabinet (27N)
- Tissue holder
- Robe hook(s) (27N, 30T)
- Towel bar(s) (NA 27N)
- Towel ring(s)
Bedroom
- Queen bed w/innerspring mattress and storage below
- Bedspread, pillows, and shams
- Headboard
- Wardrobe cabinet w/sliding, mirrored doors
Optional Equipment
- 24" HDTV (27N, 30T)
- 32" HDTV (35F)
Exterior
- Premium high-gloss sidewall skin
- Automatic entrance door steps
- Powered patio awning
- Front mud flaps
- Porch light w/interior switch
- Incandescent lighted storage compartments (in select compartments)
- Ladder
Optional Equipment
- Lower front protective mask (requires full-body paint option)
- Entertainment Center 32" HDTV w/remote, AM/FM radio w/DVD player w/remote, speakers (NA 30T)
- Entertainment Center w/CD player, removable TV table, AM/FM radio, lockable compartment (30T)
Heating and Cooling System
- 14,800 BTU air conditioner w/ChillGrille™ (27N, 30T)
- 2 high-efficiency air conditioners w/ChillGrille and Energy Management System (35F)
- 30,000 BTU low-profile furnace (27N, 30T)
- 40,000 BTU low-profile furnace (35F)
Optional Equipment
- Air conditioner heat pump (27N, 30T)
- 2 high-efficiency air conditioner heat pumps (35F)
- All-Weather Upgrade Package (30T) 5,500-watt Cummins Onan® Marquis Gold™ gas generator, 2nd high efficiency A/C with heat pumps, 50-amp. power cord, automatic changeover switch, shoreline/generator, Powerline Energy Management System
Electrical System
- AC/DC load center, 55-amp. converter/charger (27N, 30T)
- AC/DC electrical distribution system, 55-amp. converter/charger (35F)
- 30-amp. power cord (27N, 30T)
- 50-amp. power cord, shoreline/generator automatic changeover switch (35F) (30T: See All-Weather Upgrade Package Information/Heating & Cooling System)
- PowerLine® Energy Management System with display (35F) (30T: See All-Weather Upgrade Package Information/Heating & Cooling System)
- Energy Management System without display (27N) (30T: Without All-Weather Upgrade Package Information/Heating & Cooling System)
- 4,000-watt Cummins Onan MicroQuiet™ gas generator (27N, 30T)
- 5,500-watt Cummins Onan Marquis Gold gas generator (35F) (30T: See All-Weather Upgrade Package Information/Heating & Cooling System)
- 2 deep-cycle Group 24 batteries (NA 35F)
- 4 deep-cycle Group 31 batteries (35F: Qty. of 2 Group 31 batteries w/optional 4-door refrigerator/freezer)
- Battery disconnect system (chassis and coach)
- Automatic dual-battery charge control
- Auxiliary start circuit
- AC duplex receptacle
- Cable TV input
- Portable satellite dish hookup, power cord
- Exterior antenna jack
- 2,000-watt AC/DC inverter w/remote panel (35F)
- Automatic start generator (35F)
Optional Equipment
- 1,000-watt AC/DC inverter w/remote panel (NA 35F)
Plumbing System
- Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, exterior wash station w/lighted pump switch, 10' sewer hose
- 6-gallon 110-volt/LP water heater w/motoraid (NA 35F)
- 10-gallon 110-volt/LP water heater w/motoraid (35F)
- Heated holding tank compartment
- Permanent-mount LP tank w/gauge
- On-demand water pump
- TrueLevel™ holding tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- LPG accessory connection (patio area)
- Gravity tank fill w/lockable door
- Holding tank flushing system (black tank only)
- Sewage pump (macerator) (35F)
- Water system filtration package
Safety
- Child seat tether anchor (forward facing dinette seat)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- High-mount brake lamp
Warranty
- 12-month/15,000-mile basic limited warranty
- 36-month/36,000-mile limited warranty on structure
- 10-year limited parts-and-labor warranty on roof skin
See us for a complete list of features and available options.
All features and specifications are subject to change.
